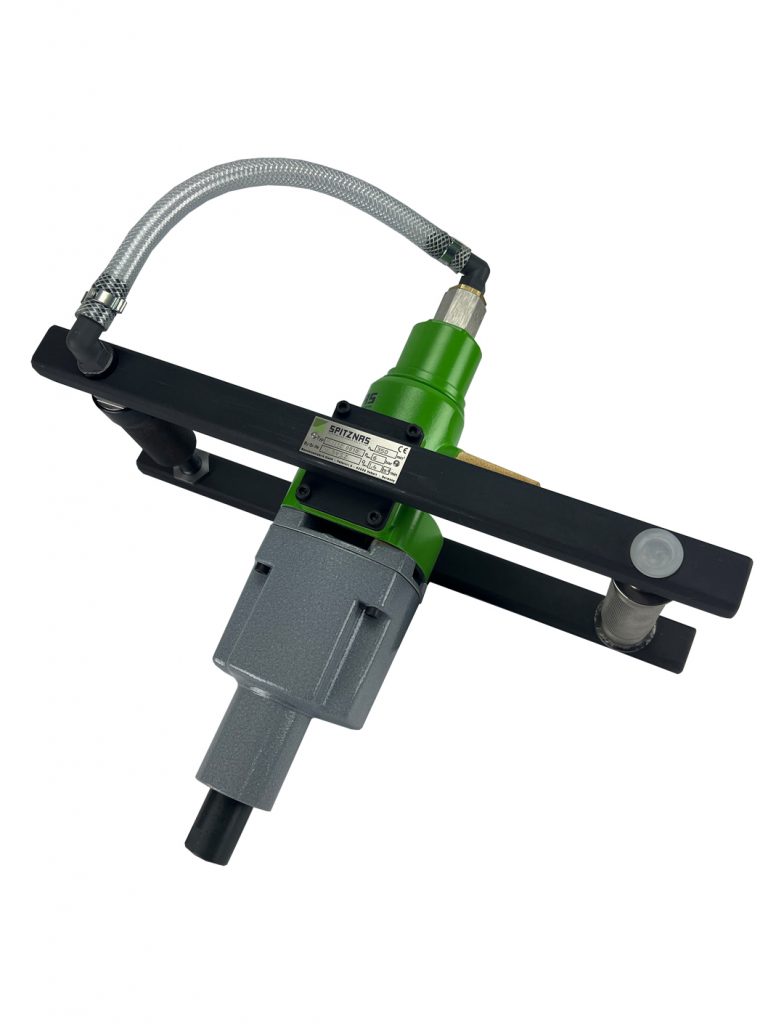

Mixer

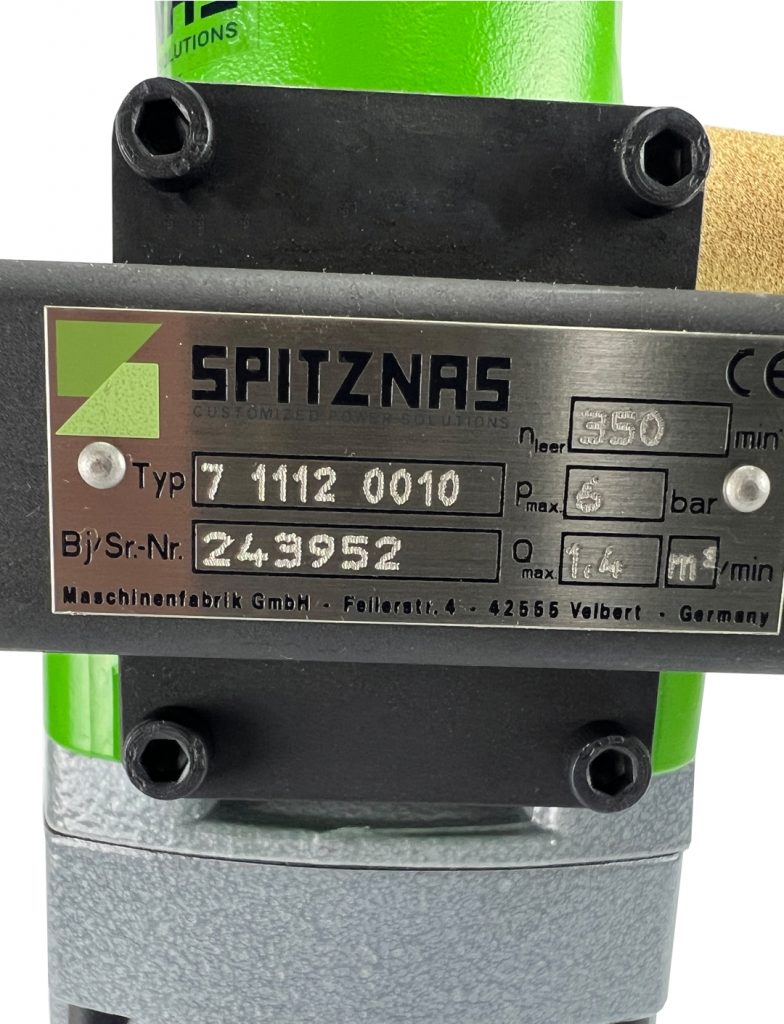

Order Number: 7 1112 0010

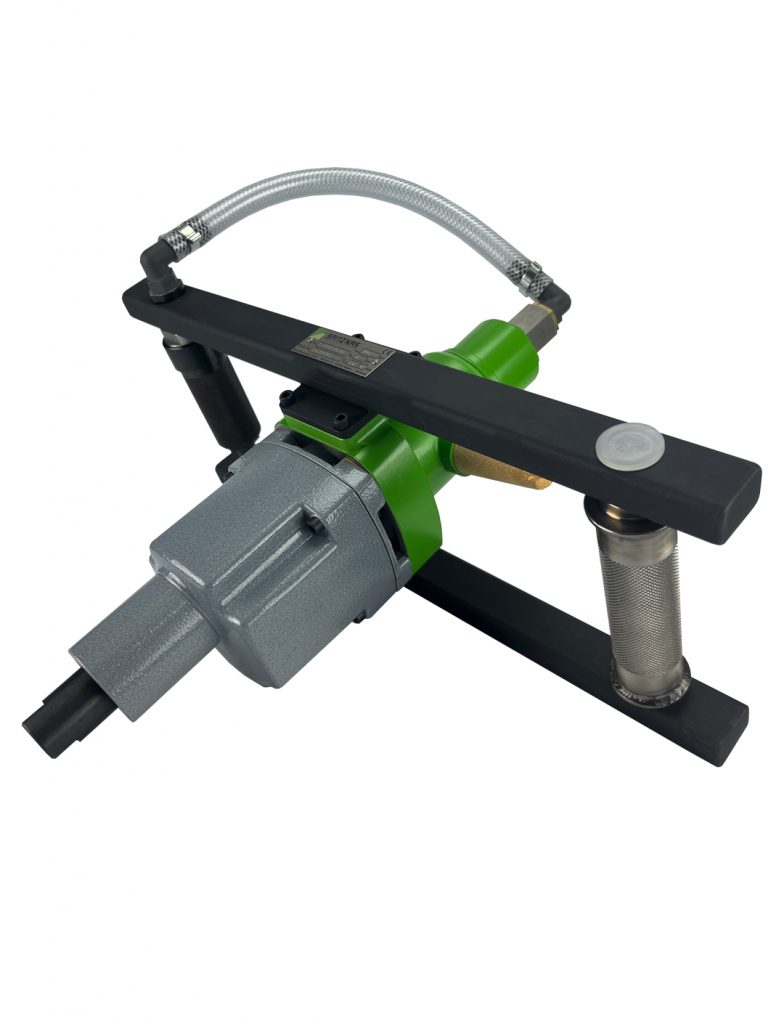

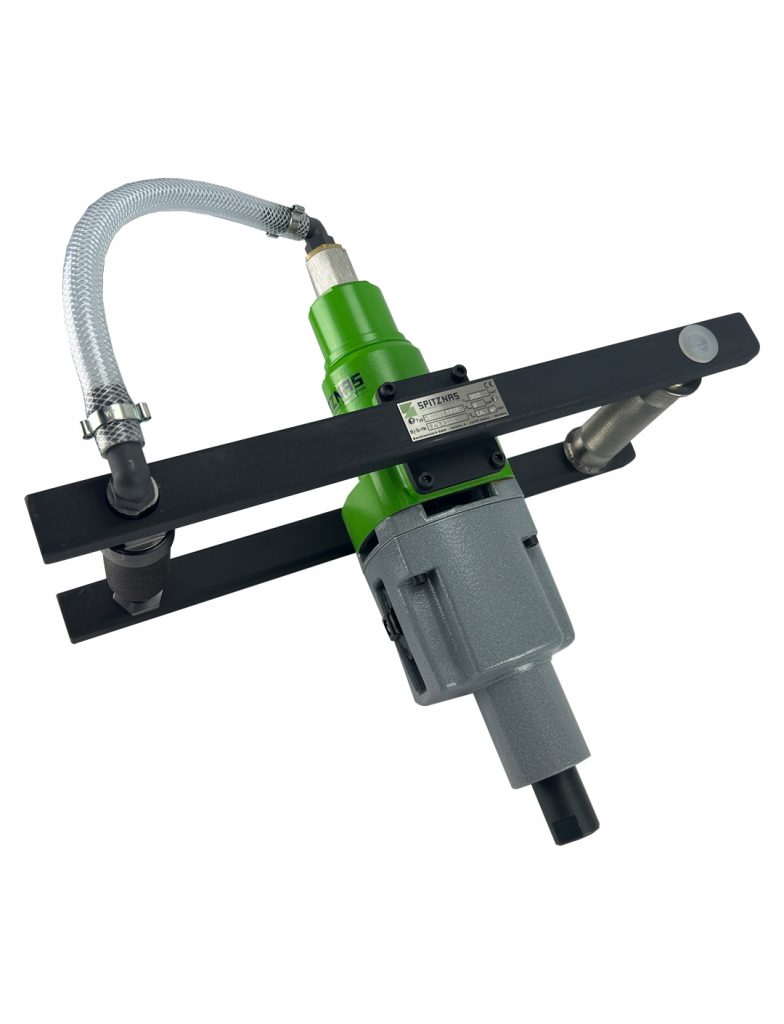

Pneumatic mixer, for all mixing work with two speed ranges and twist throttle.

Energy source: Pneumatic

Energy source: Pneumatic

Operating pressure: 6 bar

Operating pressure: 6 bar

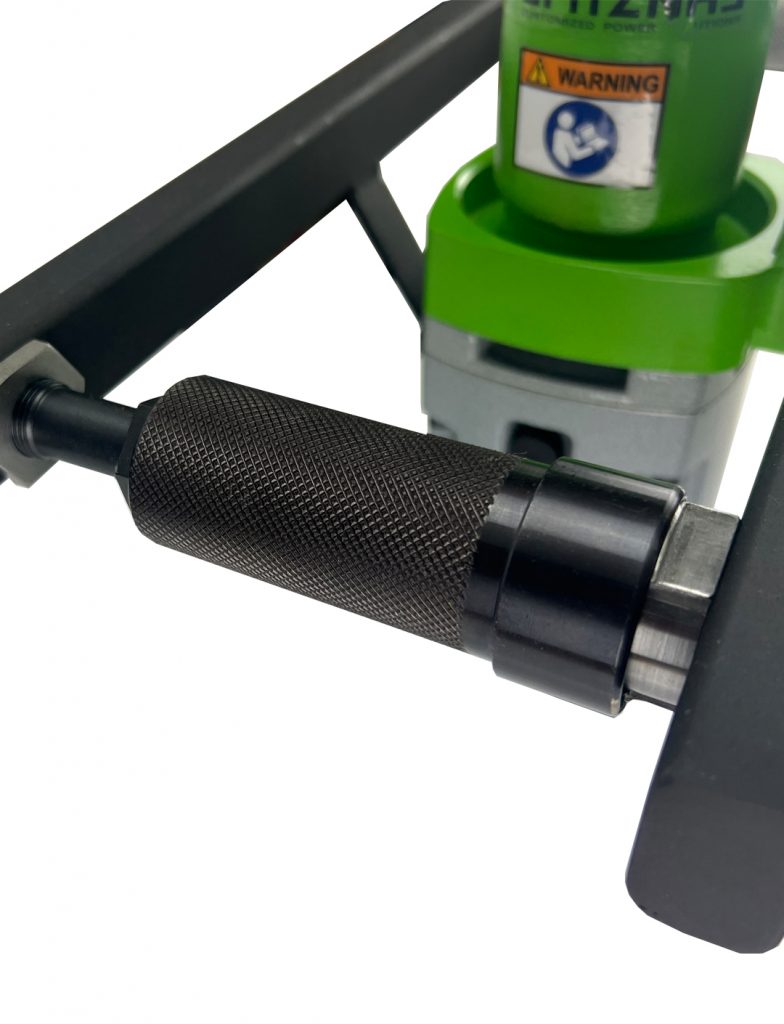

Actuation: Twist throttle

Actuation: Twist throttle

Contact Brochure

Technical Data

ORDER NO.	7 1112 0010
Energy Source	Pneumatic
Operating Pressure	6 bar
Valve type	Twist throttle
Stirring tool max. dia.	140.00 mm
Mix capacity/batches up to	50.00 kg
Power	1.10 kW

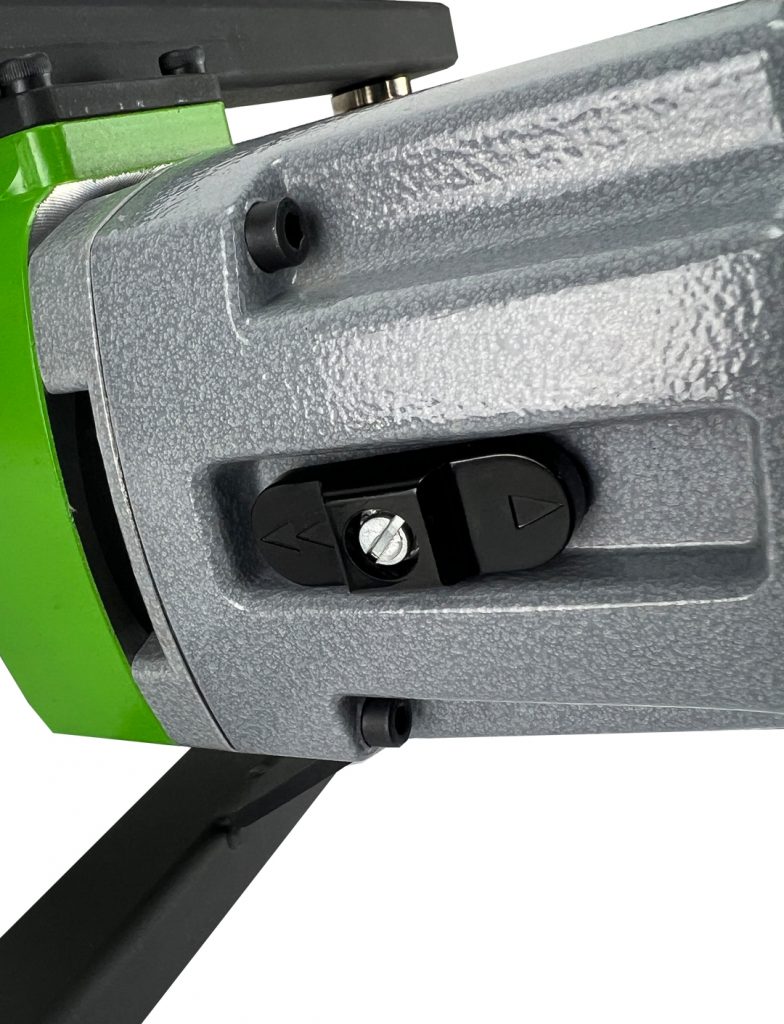

Gear stages	2
Speed 1st gear	0-190 rpm
Speed 2nd gear	0-350 rpm
Air consumption	1.40 m³/min

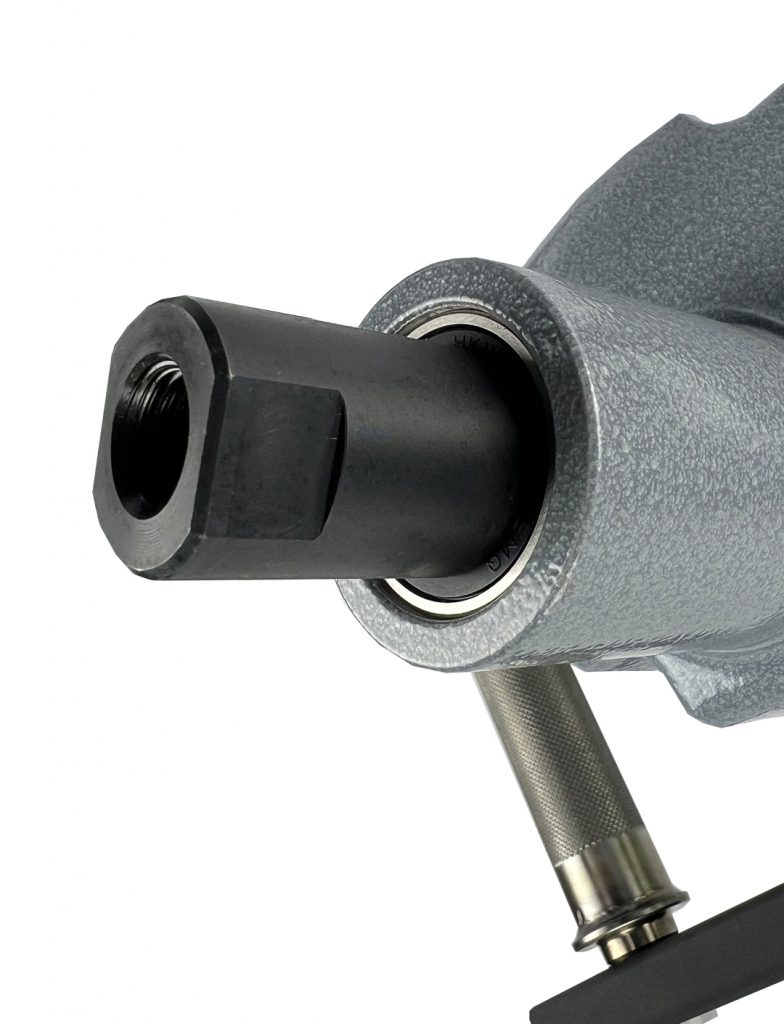

Tool shank/thread	M14 mm

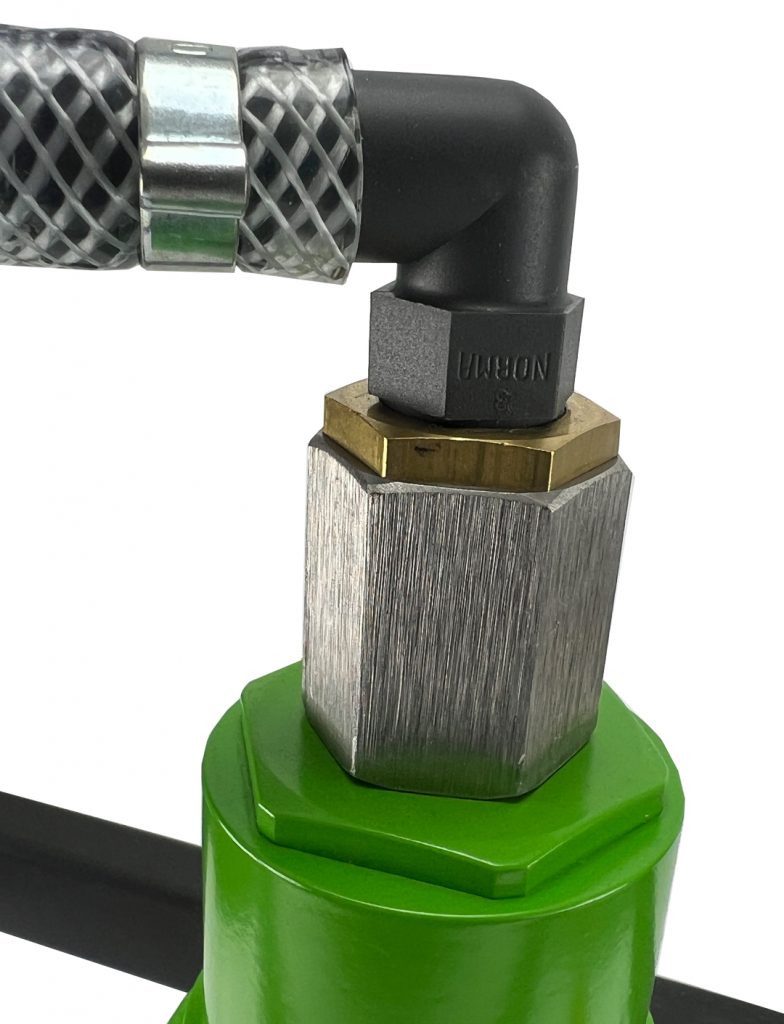

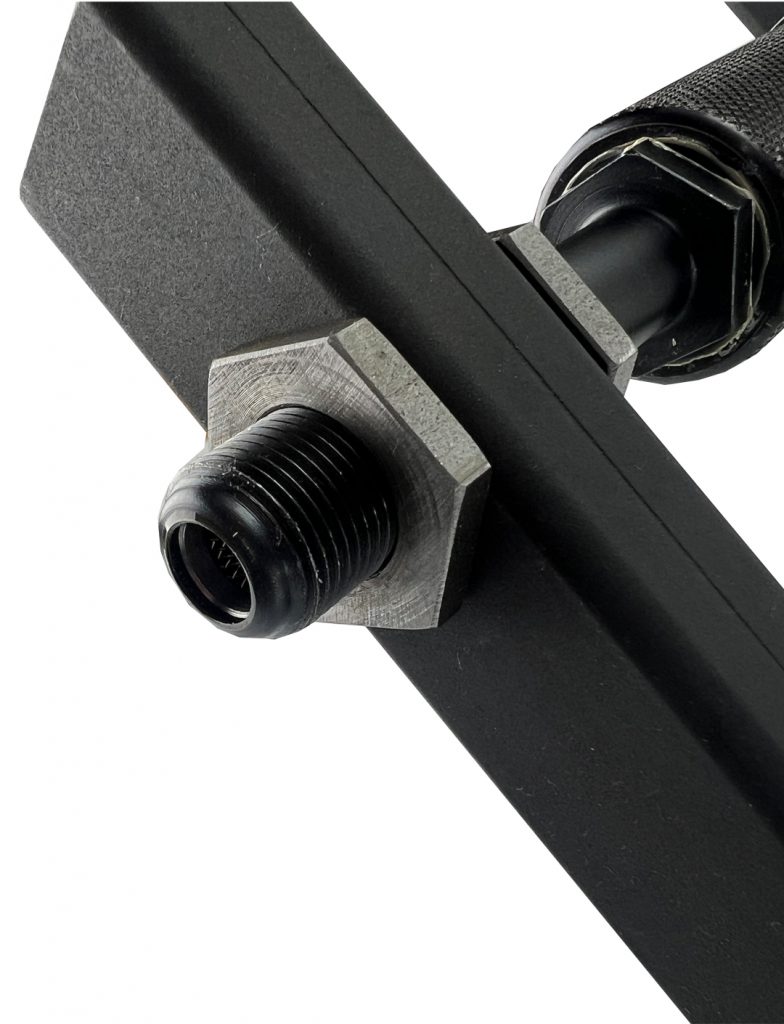

Connection	R3/8"male
Noise level LpA	79.0 dB(A)
Noise level LWA	90.0 dB(A)
Vibration level	<2.5 m/s²
Weight	6.8 kg
Fields of application / branch	Plant and mechanical construction

Accessories

ORDER NO.	Type	Tool adapter	Diameter [mm]	Length [mm]
9 7001 0010	Round stirrer, for liquid material with low viscisity	M14 male	100.00	600.00
9 7001 0020	Round stirrer, for liquid material with low viscisity	M14 male	120.00	600.00
9 7002 0010	Helicon ribbon stirrer, for doughy material with high viscosity	M14 male	100.00	600.00
9 7002 0020	Helicon ribbon stirrer, for doughy material with high viscosity	M14 male	120.00	600.00
9 7002 0030	Helicon ribbon stirrer, for doughy material with high viscosity	M14 male	135.00	600.00
9 7002 0040	Helicon ribbon stirrer, for doughy material with high viscosity	M14 male	160.00	600.00
9 7003 0010	Mortar stirrer, for finishing compound, lime and concrete	M14 male	120.00	600.00
9 7003 0020	Mortar stirrer, for finishing compound, lime and concrete	M14 male	140.00	600.00
9 7003 0030	Mortar stirrer, for finishing compound, lime and concrete	M14 male	160.00	600.00
9 7004 0010	Disc Stirrer, for mixing of liquid mediums	M14 male	120.00	590.00
9 7004 0020	Disc Stirrer, for mixing of liquid mediums	M14 male	150.00	500.00

ORDER NO.	Description	Tool adapter	Length [mm]
9 7005 0050	Extension	M14	150.00
9 7005 0010	Extension	M14	250.00

ORDER NO.	Description	Height [mm]	Width [mm]	Length [mm]	Mixer clamp dia. [mm]	Weight [kg]
9 7006 0020	Stand	1,600	600.00	800.00	40.00/60.00	25.0

ORDER NO.	Description
9 2406 0260	Portable service unit with pressure regulator 3/4“
9 2406 0650	Portable service unit with protection housing and pressure regulator 3/4“
More accessories on request.
