| ORDER NO. | 2 1317 0030 |
| ATEX Specification | II2GExhIIBT5Gb |
| Energy source | Hydraulic |
| Operating pressure | 140 bar |
| Drill bit connection | 1 1/4" UNC male / R1/2" female mm |
| Max. drill bit dia. | 160.00 mm |
| Application | free-hand operation/ with drill rig |
| Gear stages | 3 |
| Speed stages | 380/900/1,800 rpm |
| Torque stages | 60/38/17 Nm |
| Power | 2.80 kW |
| Volume flow | 22-45 l/min |
| Centering diameter | 60.00 mm |
| Machine length | 490.00 mm |
| Anschluss | R3/4"male Connection |
| Hydraulic hose connection | Flat-Star A250-OM/OF-1/2”BSP |

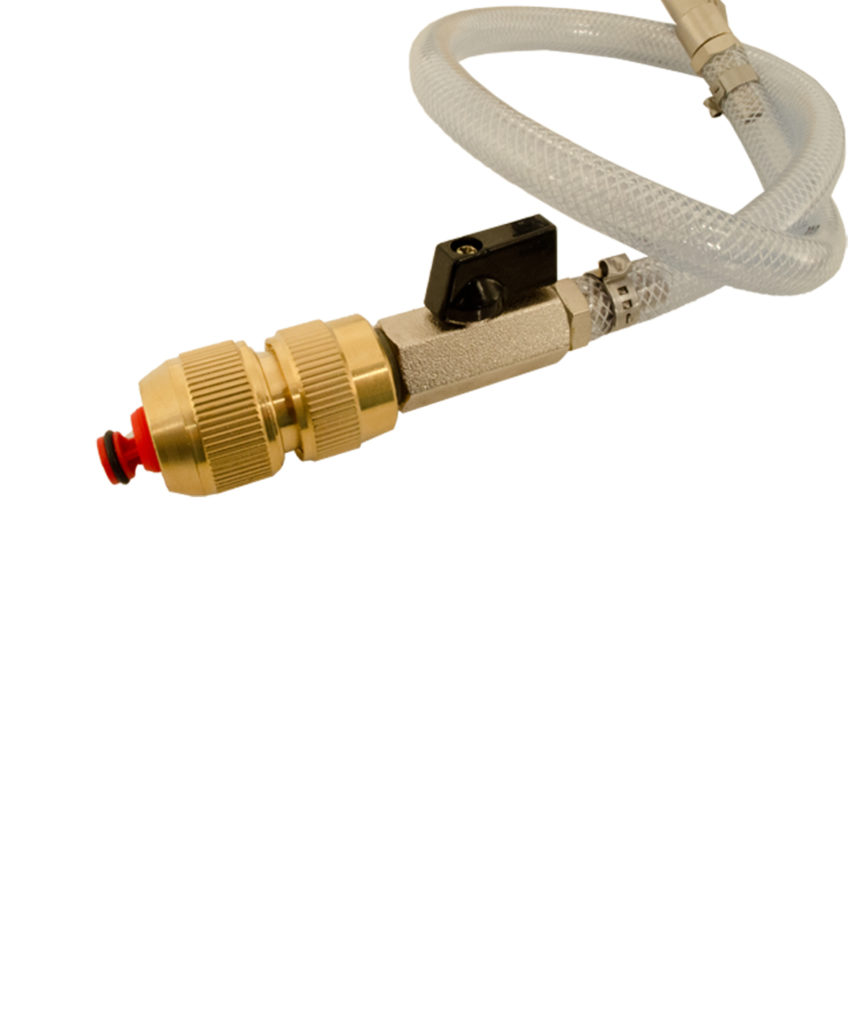

| Cooling water connection | Gardena System |
| Hydraulic medium | Hydraulic oil |
| Hydraulic circuit type | open circuit |
| Oil filtration class | ISO-level of purity 20/18/13 |
| Temperature of oil | -34 up to +82 °C |
| Viscosity of oil | >13 centistokes |
| Noise level LpA | 80.0 dB(A) |
| Noise level LWA | 91.0 dB(A) |
| Vibration level | <2.5 m/s² |
| Weight | 8.5 kg |
| Fields of application / branch | Energy and pipeline construction; Plant and mechanical construction; Underwater Work |
| ORDER NO. | Drill bit dia. [mm] | Optimum drilling speed [rpm] | Peripheral speed [m/s] | Connection [inch] | Usable length [mm] |
|---|---|---|---|---|---|
| 9 2527 0010 | 16.00 | 4,500 | 3.53 | R1/2“ | 320.00 |
| 9 2527 0020 | 20.00 | 3,200 | 3.35 | R1/2“ | 400.00 |
| 9 2527 0030 | 25.00 | 2,500 | 3.27 | R1/2“ | 400.00 |
| 9 2527 0040 | 30.00 | 2,200 | 3.45 | R1/2“ | 400.00 |
| 9 2527 0050 | 35.00 | 1,900 | 3.48 | R1/2“ | 400.00 |
| 9 2527 0060 | 40.00 | 1,700 | 3.55 | R1/2“ | 400.00 |
| 9 2527 0070 | 45.00 | 1,500 | 3.53 | R1/2“ | 400.00 |
| 9 2527 0080 | 50.00 | 1,300 | 3.40 | R1/2“ | 400.00 |
| 9 2527 0090 | 55.00 | 1,200 | 3.45 | R1/2“ | 400.00 |
| 9 2527 0100 | 60.00 | 1,100 | 3.45 | R1/2“ | 400.00 |
| 9 2527 0110 | 68.00 | 1,000 | 3.40 | R1/2“ | 400.00 |
| 9 2527 0120 | 72.00 | 900 | 3.30 | R1/2“ | 400.00 |
| 9 2526 0140 | 82.00 | 800 | 3.35 | 1 1/4“UNC | 450.00 |
| 9 2526 0160 | 92.00 | 680 | 3.20 | 1 1/4“UNC | 450.00 |
| 9 2526 0180 | 102.00 | 620 | 3.25 | 1 1/4“UNC | 450.00 |
| 9 2526 0200 | 112.00 | 570 | 3.28 | 1 1/4“UNC | 450.00 |
| 9 2526 0220 | 122.00 | 520 | 3.26 | 1 1/4“UNC | 450.00 |
| 9 2526 0240 | 132.00 | 470 | 3.20 | 1 1/4“UNC | 450.00 |
| 9 2526 0260 | 142.00 | 420 | 3.07 | 1 1/4“UNC | 450.00 |
| 9 2526 0280 | 152.00 | 390 | 3.06 | 1 1/4“UNC | 400.00 |
| ORDER NO. | Description |
|---|---|
| 2 1317 9500 | Drill rig for angular holes under 45°-90° up to dia. 160 mm |
| ORDER NO. | Description | For pipe dia.[mm] |
|---|---|---|
| 2 1313 8500 | Clamp for pipes, to use with drill rig type 9 4101 0080 | 150.00 up to 600.00 |
| ORDER NO. | Description |
|---|---|
| 9 2902 0280 | Adapter from 1 1/4“ UNC female to M18x1.5 male |
| 9 2902 0290 | Adapter from 1 1/4“ UNC female to Weldonschaft 1 1/4“ female |
| 9 2902 0350 | Adapter from 1 1/4“ UNC female to Weldon 3/4“ female |
| 9 2902 0240 | Adapter from R 1/2“ for drill chuck type 9 2911 0040 and type 9 2911 0050 |
| 9 2911 0040 | Drill chuck for drill bit dia. 1.5 up to 13 mm |
| 9 2911 0050 | Druill chuck for drill bit dia. 3 up to 16 mm |
| ORDER NO. | Description | Connection (machine side) | Connection (drill bit) | Length [mm] |
|---|---|---|---|---|
| 2 1315 7020 | Extension | 1 1/4“ UNC female | R1/2" female | 300.00 |
| 2 1319 7020 | Extension | 1 1/4“ UNC female | 1 1/4“ UNC male | 100.00 |
| 2 1318 7020 | Extension | 1 1/4“ UNC female | 1 1/4“ UNC male | 200.00 |
| 2 1314 7020 | Extension | 1 1/4“ UNC female | 1 1/4“ UNC male | 300.00 |
| 2 1316 7020 | Extension | 1 1/4“ UNC female | 1 1/4“ UNC male | 400.00 |
| 2 1322 7020 | Extension | 1 1/4“ UNC female | 1 1/4“ UNC male | 500.00 |
| ORDER NO. | Description |
|---|---|
| 2 1317 9010 | Hydraulic hose set |
| ORDER NO. | Description |
|---|---|
| 5 8002 9100 | Water tank 10l |
| 2 1315 9500 | Tool set |
| 5 1212 9000 | Carrying case |
| 9 9902 0120 | Multi oil for cleaning and protection |
