| ORDER NO. | 2 2084 0010 |

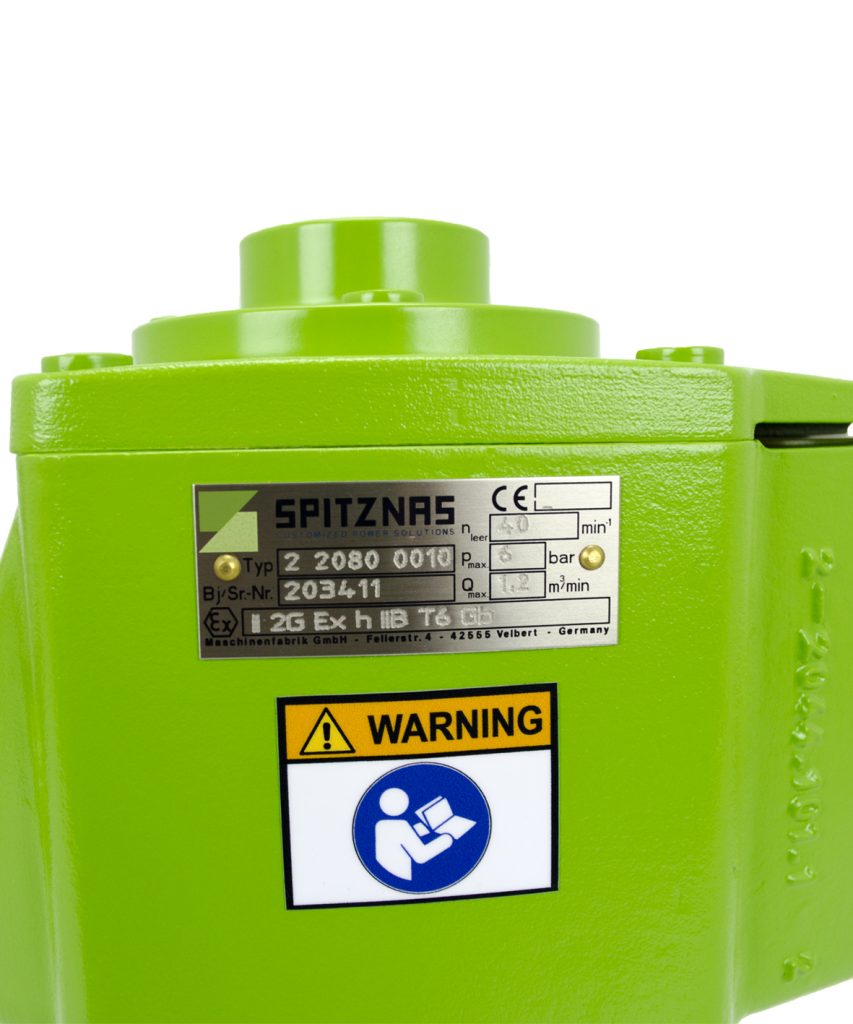

| ATEX Specification | II2GExhIIBT6Gb |
| Energy source | Pneumatic |
| Operating pressure | 6 bar |
| Drill chuck | MT2 |
| Valve type | Safety lever valve |
| Direction of rotation | clockwise |
| Drilling dia. capacity in steel | 23.00 mm |
| Reaming dia. capacity in steel | 17.00 mm |
| Torque | 46 Nm |
| Speed (free) | 200 rpm |
| Power | 1.00 kW |
| Air consumption | 1.20 m³/min |
| Height with feed spindle | 410.00 mm |
| Connection | R3/4"außen |
| Noise level LpA | 92.0 dB(A) |
| Noise level LWA | 103.0 dB(A) |
| Vibration level | 3.3 m/s² |
| Weight | 12.0 kg |
| Fields of application / branch | Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction |
| ORDER NO. | Description |
|---|---|
| 9 2406 0260 | Portable service unit with pressure regulator 3/4“ |
| 9 2406 0630 | Portable service unit with protection housing and pressure regulator 1/2“ |
| 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4“ |
| ORDER NO. | Description |
|---|---|
| 9 3610 0410 | Pneumatic hose ID 13.00 mm, length 2.5 m, screw-on claw coupling |
| 9 3610 0420 | Pneumatic hose ID 16.00 mm, length 2.5 m, screw-on claw coupling |
| 9 3610 0430 | Pneumatic hose ID 19.00 mm, length 2.5 m, screw-on claw coupling |
| 9 2102 0020 | Claw coupling, metal sealing, 3/4” ID |
| ORDER NO. | Description |
|---|---|
| 9 9902 0120 | Multi oil for cleaning and protection |
