| ORDER NO. | 3 6212 0050 |
| ATEX Specification | II2GExhIIBT6Gb |
| Energy source | Pneumatic |
| Operating pressure | 6 bar |
| Shank | □20 mm female |
| Valve type | Safety lever valve |
| Direction of rotation | right/left |
| Torque | 230 Nm |
| Speed (free) | 70-75 rpm |
| Speed (under load) | 20 rpm |
| Power | 0.70 kW |
| Air consumption | 1.30 m³/min |
| Height | 90.0 mm |
| Length | 575.0 mm |

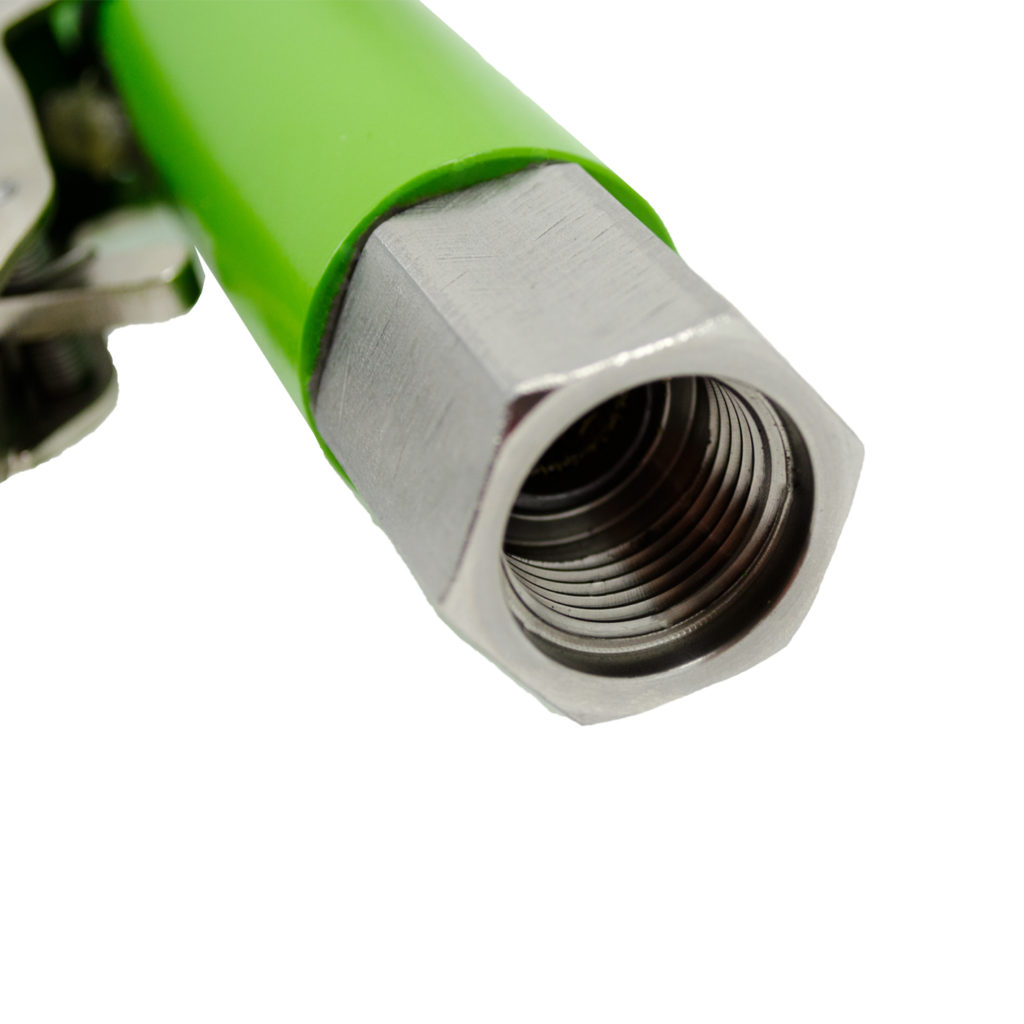

| Connection | R1/2"female |
| Noise level LpA | 91.0 dB(A) |
| Noise level LWA | 102.0 dB(A) |
| Vibration level | <2.5 m/s² |
| Weight | 6.2 kg |
| Fields of application / branch | Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction |
| ORDER NO. | Description | Length [mm] | Clamping system |
|---|---|---|---|
| 6 1014 9600 | Reaction bar (as a torque-support) | 280-354 | Quick-release |
| ORDER NO. | Description | For machine adapter | Output |
|---|---|---|---|
| 3 6212 7910 | Square drive (on one side) | □ 20 female | 3/4" male |
| 3 6339 4910 | Square drive (on two sides) | □ 20 female | 1/2" male |
| 6 1015 7030 | Square drive (on two sides) | □ 20 female | 3/4" male |
| 6 1016 7940 | Square drive (on one side) | □ 20 female | 1" male |
| 6 1018 7940 | Square drive (on two sides) | □ 20 female | 1/2" male |
| 6 1017 7940 | Square drive (on two sides) | □ 20 female | 3/4" male |
| ORDER NO. | Description |
|---|---|
| 6 1055 9200 | Cover (for one side), mountable on both sides |
| ORDER NO. | Description |
|---|---|
| 9 2406 0260 | Portable service unit with pressure regulator 3/4“ |
| 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4“ |
| ORDER NO. | Description |
|---|---|
| 9 9902 0120 | Multi oil for cleaning and protection |
