| ORDER NO. | 6 1313 0010 |

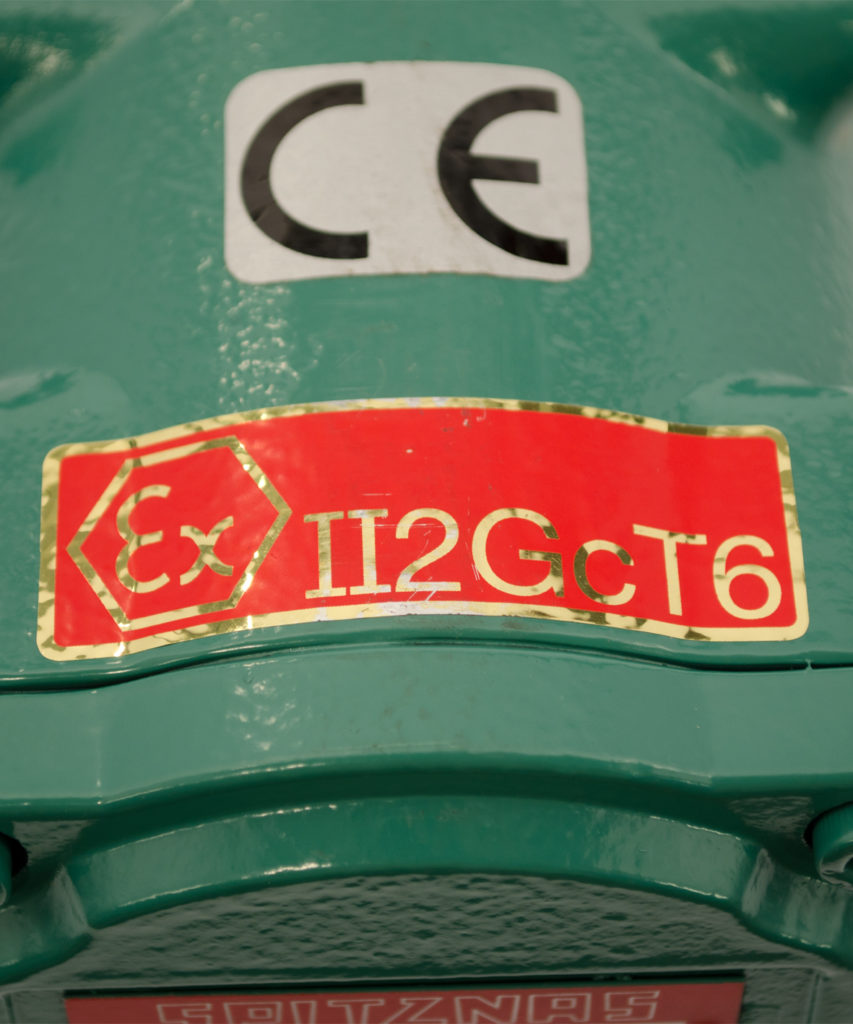

| ATEX Specification | II2GExhIIBT6Gb |
| Energy source | Pneumatic |
| Operating pressure | 6 bar |
| Square drive | 3/4" |
| Screws up to | M27 mm |
| Air consumption | 1.20 m³/min |
| Max. torque | 600 Nm |
| Distance center to outer edge | 47.50 mm |
| Connection | R1/2"female |
| Noise level LpA | 102.0 dB(A) |
| Noise level LWA | 114.0 dB(A) |
| Vibration level | 4.8 m/s² |
| Weight | 6.2 kg |
| Fields of application / branch | Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction |
| ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1408 0390 | Hexagon socket, standard length | 3/4“ | 17 | 50.00 | 31.00 |
| 9 1408 0400 | Hexagon socket, standard length | 3/4“ | 19 | 50.00 | 33.50 |
| 9 1408 0410 | Hexagon socket, standard length | 3/4“ | 22 | 50.00 | 37.00 |
| 9 1408 0420 | Hexagon socket, standard length | 3/4“ | 24 | 50.00 | 40.00 |
| 9 1408 0430 | Hexagon socket, standard length | 3/4“ | 27 | 53.00 | 43.50 |
| 9 1408 0440 | Hexagon socket, standard length | 3/4“ | 30 | 53.00 | 47.00 |
| 9 1408 0450 | Hexagon socket, standard length | 3/4“ | 32 | 57.00 | 50.00 |
| 9 1408 0460 | Hexagon socket, standard length | 3/4“ | 36 | 56.00 | 52.00 |
| 9 1408 0470 | Hexagon socket, standard length | 3/4“ | 41 | 58.00 | 61.50 |
| 9 1408 0480 | Hexagon socket, standard length | 3/4“ | 46 | 64.00 | 63.00 |
| ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1408 0510 | Hexagon socket, extra long | 3/4“ | 22 | 95.00 | 38.00 |
| 9 1408 0520 | Hexagon socket, extra long | 3/4“ | 24 | 95.00 | 40.00 |
| 9 1408 0530 | Hexagon socket, extra long | 3/4“ | 27 | 95.00 | 43.00 |
| 9 1408 0540 | Hexagon socket, extra long | 3/4“ | 30 | 95.00 | 47.00 |
| 9 1408 0550 | Hexagon socket, extra long | 3/4“ | 32 | 95.00 | 49.00 |
| 9 1408 0560 | Hexagon socket, extra long | 3/4“ | 36 | 95.00 | 54.00 |
| ORDER NO. | Description | Square drive [inch] | Wrench drive SW [mm] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1424 0540 | Hexagon socket for allen head screws | 3/4“ | 17 | 85.00 | 44.00 |
| 9 1424 0550 | Hexagon socket for allen head screws | 3/4“ | 19 | 85.00 | 44.00 |
| 9 1424 0660 | Hexagon socket for allen head screws | 3/4“ | 22 | 85.00 | 44.00 |
| 9 1424 0670 | Hexagon socket for allen head screws | 3/4“ | 24 | 85.00 | 44.00 |
| ORDER NO. | Description | Tool square drive [inch] | Output square drive [inch] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1420 0100 | Extension | 3/4“ | 3/4“ | 175.00 | 44.00 |
| 9 1420 0110 | Extension | 3/4“ | 3/4“ | 250.00 | 44.00 |
| 9 1420 0120 | Extension | 3/4“ | 3/4“ | 330.00 | 44.00 |
| ORDER NO. | Description | Tool square drive [inch] | Output square drive [inch] | Length [mm] | Diameter [mm] |
|---|---|---|---|---|---|
| 9 1422 0070 | Universal joint | 3/4“ | 3/4“ | 65.00 | 44.00 |
| ORDER NO. | Description |
|---|---|
| 9 2406 0260 | Portable service unit with pressure regulator 3/4“ |
| 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4“ |
| ORDER NO. | Description |
|---|---|
| 9 3610 0410 | Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp |
| 9 3610 0420 | Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp |
| 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp |
| ORDER NO. | Description |
|---|---|
| 9 9902 0120 | Multi oil for cleaning and protection |
| More accessories on request. |
