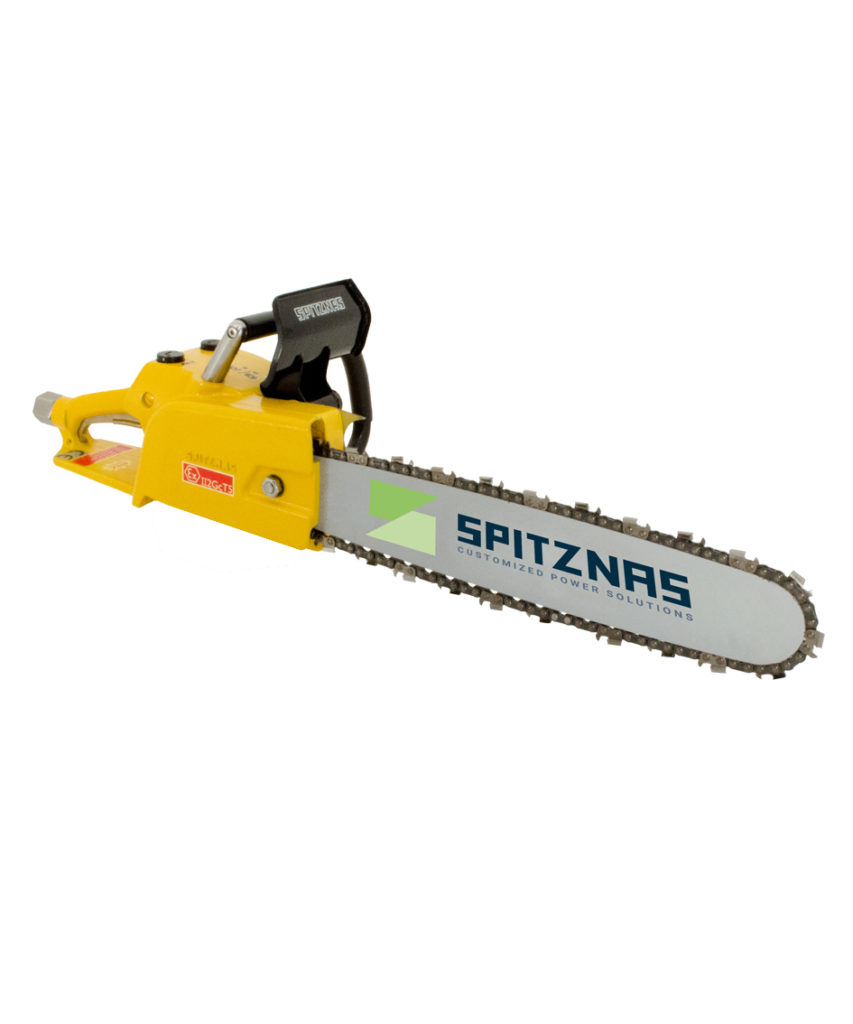

| ORDER NO. | 5 1027 0010 |
| ATEX Specification | II2GExhIIBT5Gb |
| Energy source | Pneumatic |
| Operating pressure | 6 bar |
| Air consumption | 2.90 m³/min |
| Power | 3.00 kW |
| Usable for | Cutting plastic |
| Chain braking time | <0.12 s |
| Speed (free) | 9.000 rpm |
| Water cooling connection | Gardena NW 1/2" x 16 mm mm |
| Connection | R3/4"female |
| Length without chain bar | 400.00 mm |
| Noise level LpA | 102.6 dB(A) |
| Noise level LWA | 113.7 dB(A) |
| Vibration level | <2.5 m/s² |
| Weight without chain bar/chain | 8.5 kg |
| Fields of application / branch | Energy and pipeline construction; Plant and mechanical construction; Underwater Work |
| ORDER NO. | Description | Chain pitch (inch) | Chain [pieces] | Drive link size [mm] | Chain bar length usable [mm] | For cutting |
|---|---|---|---|---|---|---|
| 5 1007 9960 | Chisel chain | 0.404 | 46 | 1.60 | 270.00 | Wood, plastic, GRP (without sand mixture) |
| 5 1026 9930 | Chisel chain | 0.404 | 62 | 1.60 | 430.00 | Wood, plastic, GRP (without sand mixture) |
| 5 1007 9940 | Chisel chain | 0.404 | 80 | 1.60 | 630.00 | Wood, plastic, GRP (without sand mixture) |
| 5 1007 9970 | Chisel chain | 0.404 | 93 | 1.60 | 730.00 | Wood, plastic, GRP (without sand mixture) |
| ORDER NO. | Description | Chain pitch (inch) | Chain [pieces] | Drive link size [mm] | Chain bar length usable [mm] | For cutting |
|---|---|---|---|---|---|---|
| 5 1021 9960 | Chisel chain carbide-tipped | 0.404 | 46 | 1.60 | 270.00 | Wood, plastic, GRP (without sand mixture) |
| 5 1026 9950 | Chisel chain carbide-tipped | 0.404 | 62 | 1.60 | 430.00 | Wood, plastic, GRP (without sand mixture) |
| 5 1021 9940 | Chisel chain carbide-tipped | 0.404 | 80 | 1.60 | 630.00 | Wood, plastic, GRP (without sand mixture) |
| 5 1005 9970 | Chisel chain carbide-tipped | 0.404 | 93 | 1.60 | 730.00 | Wood, plastic, GRP (without sand mixture) |
| ORDER NO. | Description | Used for | Groove width [mm] | Chain bar length usable [mm] |
|---|---|---|---|---|
| 5 1005 7160 | Chain bar | Chisel chain/carbide-tipped | 1.60 | 270.00 |
| 5 1005 7120 | Chain Bar | Chisel chain/carbide-tipped | 1.60 | 430.00 |
| 5 1005 7140 | Chain Bar | Chisel chain/carbide-tipped | 1.60 | 630.00 |
| 5 1005 7170 | Chain Bar | Chisel chain/carbide-tipped | 1.60 | 730.00 |
| ORDER NO. | Description | For chain bar length [mm] |
|---|---|---|
| 5 1003 9060 | Chain protection | 430.00 |
| 5 1003 9070 | Chain protection | 630.00; 730.00 |
| ORDER NO. | Description |
|---|---|
| 5 1026 7970 | Chain wheel assembly T8 |
| ORDER NO. | Description | For pipes up to dia. [mm] |
|---|---|---|
| 5 1027 9100 | Clamp for pipes | 450.00 |
| ORDER NO. | Description |
|---|---|
| 9 2406 0260 | Portable service unit with pressure regulator 3/4“ |
| 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4“ |
| ORDER NO. | Description |
|---|---|
| 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, with screw-on claw couplingDruckluft-Schlauch LW 19 mm, 2,5 m Länge, mit Klauenkupplung |
| 9 2102 0020 | Claw coupling, metal sealing, 3/4” ID |
| ORDER NO. | Description |
|---|---|
| 9 9902 0120 | Multi oil for cleaning and protection |
| 5 8002 9100 | Water tank 10l |
| More accessories on request. |
